In high-volume logistics, warehousing, and production environments, speed and repetitive lifting are the ultimate tests of operational efficiency. Traditional electric hoists are often too slow for rapid-fire palletizing, while manual lifting inevitably leads to worker fatigue, drop damages, and severe musculoskeletal injuries.
The Vacuum Tube Lifter is a premier ergonomic solution engineered to solve this bottleneck. Unlike standard vacuum lifters that use a hoist to lift and suction cups merely to hold, a vacuum tube lifter utilizes a single vacuum source to achieve both actions simultaneously. It is the fastest, most intuitive tool available for high-frequency, “zero-gravity” material handling.
The core innovation of the vacuum tube lifter lies in its heavy-duty, flexible lifting tube.
Grip: When the operator places the suction foot onto the surface of an item (such as a cardboard box or a woven sack), a vacuum seal is instantly established.
Lift: As air is drawn out of the system, the atmospheric pressure causes the large-diameter lift tube to contract vertically, effortlessly hoisting the load upward.
Control: By modulating a single, ergonomic hand lever, the operator regulates the air intake. Increasing the air intake allows the tube to expand and lower the load; reducing it contracts the tube to raise the load.
When the workpiece is safely positioned, fully depressing the lever releases the vacuum seal completely, allowing for a seamless, instantaneous release.
Rapid Cycle Times: There are no chains, steel cables, or slow electric motors to wait for. Raise and lower cycles happen as fast as the operator can move their hand, making it ideal for fast-paced sorting lines.
True Single-Handed Operation: Control handles are designed for intuitive, one-handed execution. Operators can guide, lift, lower, and release payloads without ever letting go of the control unit.
Zero Damage to Surfaces: Vacuum suction distributes lifting forces evenly across the face of the workpiece. This eliminates the edge crushing, puncturing, or denting commonly caused by mechanical clamps or hooks.
Versatility with Porous Materials: Advanced high-flow vacuum pumps allow these systems to safely lift porous items—like unsealed cardboard, wooden panels, or coarse fabric sacks—by continuously compensating for minor air leakage.
Vacuum tube lifters are exceptionally modular and can be outfitted with specialized suction feet to handle diverse payloads:
Carton & Box Palletizing: Rapidly stacking or destacking mixed cartons on shipping pallets at the end of packaging lines.
Sack & Bag Handling: Moving heavy paper, plastic, or woven bags of raw ingredients (e.g., flour, chemical powders, plastic pellets) into hopper feeding stations.
Liquid & Chemical Logistics: Lifting steel or plastic drums, as well as crated bottles, using custom-molded suction gaskets.
Sheet & Panel Transfer: Transferring wood panels, glass sheets, or plastic templates onto cutting tables without scratching finished coatings.
To maximize floor space and workflow integration, vacuum tube lifters can be paired with multiple structural supports:
| Support Type | Best Used For | Operational Benefit |
| Pivoting Jib Crane | Localized, circular work cells (e.g., a single bag-dump station). | Cost-effective, 180° to 360° rotation, minimal structural impact. |
| Overhead KBK Rail System | Large, rectangular work zones covering multiple pallets or long conveyor lines. | Low rolling resistance; smooth $X/Y$ horizontal travel across wide spans. |

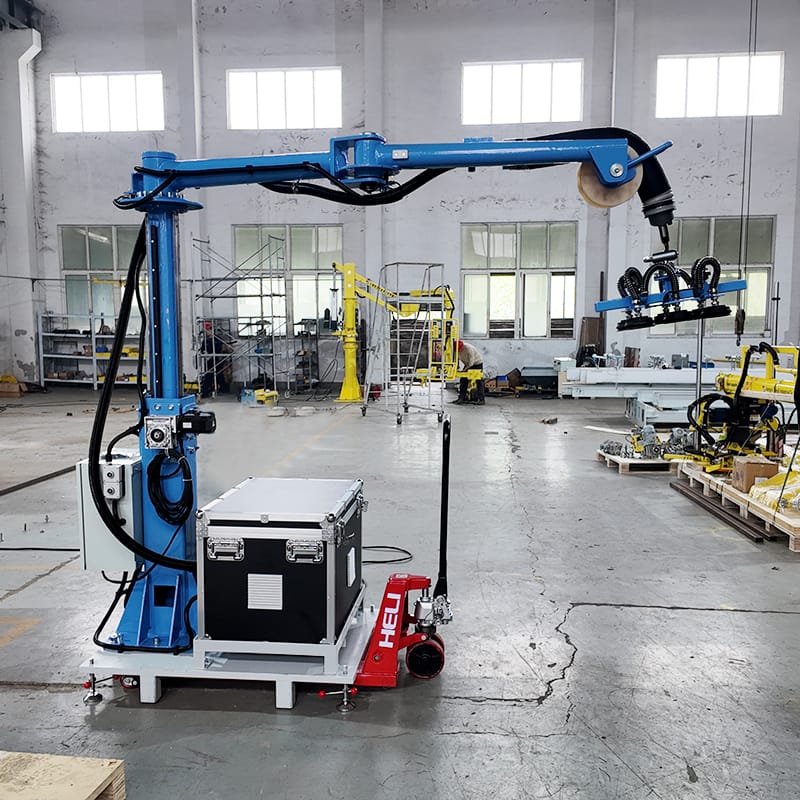

| Mobile / Portable Base Unit | Fluctuation-heavy warehouses or tight spaces like mobile container unloading. | Can be relocated easily via forklift to wherever rapid inbound/outbound logistics are required. |
