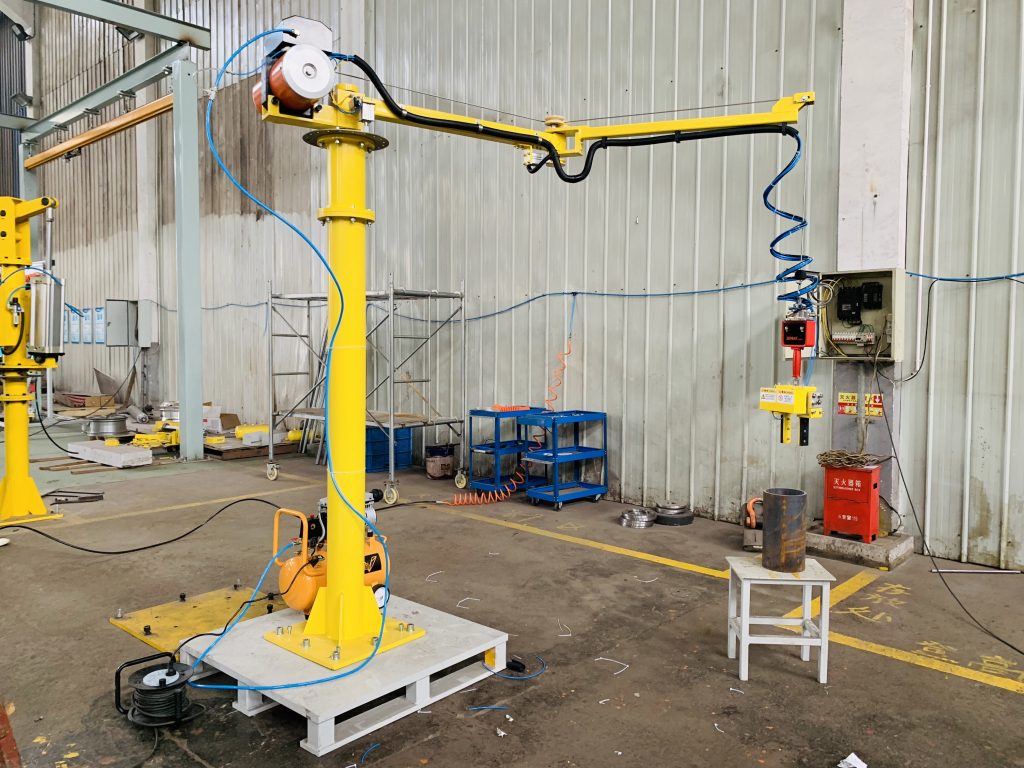

The pneumatic balance crane is a manipulator whose cantilever and fixture are connected by a soft cable (steel wire rope). The balance crane is used in conjunction with various non-standard fixtures to realize workpiece handling, palletizing, loading and unloading, but the shape of the workpiece needs to be regular and the action of the fixture is simple. Under the same height limit, the lifting speed is faster than that of the hard arm manipulator.
| Model | TLJXS-LMJ-50 | TLJXS-LMJ-100 | TLJXS-LMJ-200 | TLJXS-LMJ-300 |
| Load-Bearing | 50 KG | 100 KG | 200 KG | 300 KG |
| Working Radius | 2500 mm | 2500 mm | 2500 mm | 2500 mm |
| Lifting Height | 500-2000 mm | 500-2000 mm | 500-2000 mm | 500-2000 mm |
| Air Pressure | 0.5-0.8 Mpa | 0.5-0.8 Mpa | 0.5-0.8 Mpa | 0.5-0.8 Mpa |
Based on the product information, usage conditions, installation site environment, and layout provided by the customer, we provide customized solutions for free.
All accessories have passed factory testing and meet specifications, enabling continuous and unobstructed operation.
For complex on-site conditions or special workpieces, Tongli can provide on-site investigation and measurement services to make appropriate solutions.
Having a professional equipment installation team, with excellent skills and tools, we provide fast and reliable robotic arm installation services.
